 SunLike Deep Cycle Gel Battery 12v/6v/2v

Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications. Such as broadband, PVs etc through up-to-date gel technologies. The Gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.

1.Features
1)Designed life 15-20years in stand-by application
2) Wide operating temperature range of -20°C to 60°C centigrade
3) Low self-discharge rate and long shelf life
4)Product consistency
5)Unique terminal design to sure reliable sealing
6)Solar gel battery have passed ISO9001:2000,CE,SGS, IEC certificates

2. What is gel battery & advantage?
Special diaphragm, gel electrolyte, battery shell and security valve and so on.
Through colloid technology, the electrolyte is fixed in solid state in battery. Some trace gases are generated during the charge-discharge process, they will be freely floating through the crannies of the gel, can be regenerated according to Pb-Ca alloy cathode absorption principle, which make sealed up and maintenance free come true. The GEL battery series are specially designed for applying in solar system.

3.Application
1). Telecom systems & Solar Power
2). Monitoring and control systems at power plants and energy stations
3). Automation systems
4). Data processing systems
5). Renewable energy systems (solar, wind and hydro-electric)
6). Emergency lighting systems
7). Uninterruptible power supply systems (UPS)
8). Signaling systems at railway stations, airports and seaports

Use and maintenance
1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.



Model                 Voltage(V) Capacity(ah) Dimension(mm)                    Weight(kg)
SG12-38 12 38 195*165*175*180 12.8
SG12-55 12 55 230*138*201*212 15.5
SG12-65 12 65 350*167*176*176 20
SG12-85 12 85 260*169*211*231 23.3

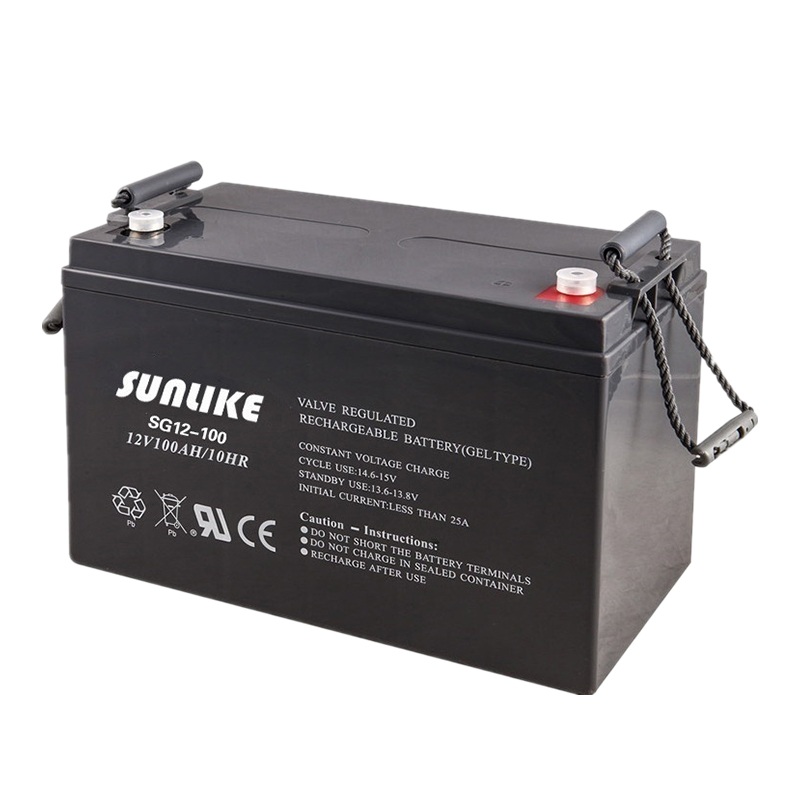

SG12-100 12 100 329*173*210*230 28.5
SG12-120 12 120 405*173*210*230 33.5
SG12-150 12 150 484*171*239*241 42.5
SG12-180 12 180 532*206*216*221 53

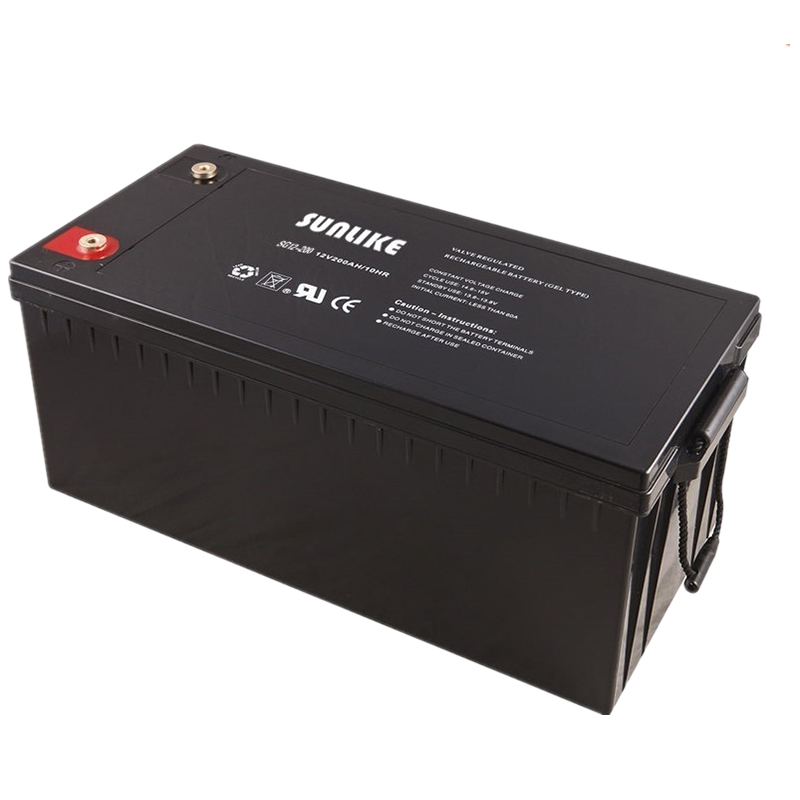

SG12-200 12 200 522*240*218*242 56
SG12-250 12 250 522*240*218*242 62
SG12-300 12 300 522*269*218*242 69
SG2-50 2 50 161*50*166*166 3.2
SG2-100 2 100 171*71*205*228 6.5
SG2-150 2 150 172*102*205*228 9
SG2-200 2 200 173*111*330*365 13.5
SG2-300 2 300 171*151*330*365 18.5
SG2-400 2 400 211*176*330*365 26.5
SG2-450 2 450 223*187*351*385 31.5
SG2-500 2 500 241*172*331*365 33.5
SG2-600 2 600 301*175*331*365 41.5
SG2-700 2 700 301*175*331*365 46
SG2-800 2 800 410*175*330*365 52.5
SG2-1000 2 1000 475*175*328*365 62.5
SG2-1200 2 1200 475*175*328*365 75
SG2-1250 2 1250 475*175*328*365 77
SG2-1500 2 1500 401*351*343*383 98.5
SG2-2000 2 2000 491*351*343*383 127
SG2-2500 2 2500 491*350*343*383 159
SG2-3000 2 3000 710*351*343*383 188.5
SG2-3500 2 3500 710*353*341*383 228
